- MAX DECK
- ROTAX S
- WALL DESIGN
- CAPTAIN'S HELM
- TRIFOLD BENCH
- SWITCHBACK
- SPORT BIMINI
- FEATURES
VIEW FLOOR PLANS & SPECIFICATIONS
*Availability of different boat configurations and colors may vary. For full and accurate configuration options, please contact your local dealer.
-
2024

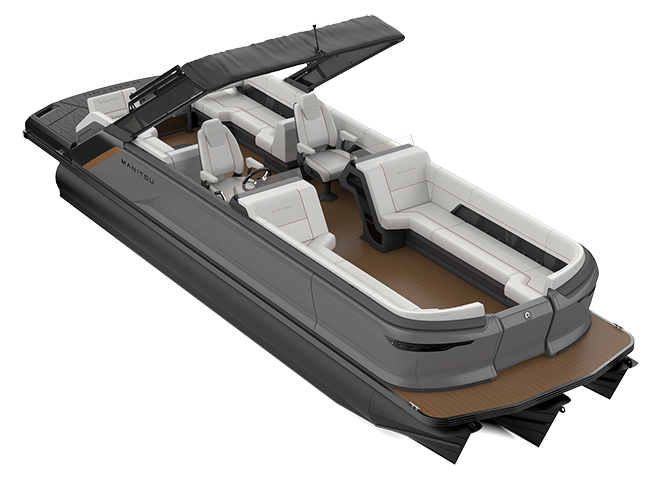

Explore 22 MAX BENCH
Transportation and preparation not included.- 11 Person Capacity
- MAX Deck with Rotax S 150
- Portside Extended Bench Seating
- Sport Bimini, Black, Forward Folding with Gas Assist
- Ski Tow Pylon
Comparator is full! Only three options can be compared at the time.The Explore 22 MAX Bench includes a full portside bench that extends the passenger side to midship. With max capacity, there's room for up to 11 people. This model features the game-changing MAX Deck and is rigged with a Rotax outboard engine with Stealth technology.
-
HP Rating
150 HP
-
Lengths
25' 1 (7.6m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
3,836 lbs (1,740 kg)
-
Capacity
11 Persons
Engine Engine - Rotax Stealth
Dimensions Weight - 3,532 lbs (1,602 kg)
Persons/Capacity - 11
Length Overall - 25' 1 (7.6m)
Deck Overall - 25' 1 (7.6m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 150 HP
StandardFeatures Standard Accessories - Max Deck
MarineMat flooring on Max Deck, 6mm
LinQ 16" Base Attachment on Max Deck
Extended Bench, Port
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Captain's Helm
Forward Flip Seat Hinges
Ski Tow Pylon
Telescoping Boarding Ladder, Starboard Stern Side of Max Deck
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - 9" Garmin Display (93sv)
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Digital Power
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
Transportation and preparation not included.
- 11 Person Capacity
- MAX Deck with Rotax S 150
- Portside Navigators Helm and Switchback Lounger
- Sport Bimini, Black, Forward Folding with Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 22 MAX Switchback with Trifold bench features a portside switchback lounger with a navigator helm. With max capacity, there's room for up to 11 people. This model features the game-changing MAX Deck and is rigged with a Rotax outboard engine with Stealth technology.
-
HP Rating
150 HP
-
Lengths
25' 1 (7.6m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
3,836 lbs (1,740 kg)
-
Capacity
11 Persons
Engine Engine - Rotax Stealth
Dimensions Weight - 3,532 lbs (1,602 kg)
Persons/Capacity - 11
Length Overall - 25' 1 (7.6m)
Deck Overall - 25' 1 (7.6m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 150 HP
StandardFeatures Standard Accessories - Max Deck
MarineMat flooring on Max Deck, 6mm
LinQ 16" Base Attachment on Max Deck
Extended Bench, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Captain's Helm
Forward Flip Seat Hinges
Ski Tow Pylon
Telescoping Boarding Ladder, Starboard Stern Side of Max Deck
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
9" Garmin Display (93sv)
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Digital Power
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
Transportation and preparation not included.
- 11 Person Capacity
- MAX Deck with Rotax S 150
- Portside Navigators Helm and Chair
- Sport Bimini, Black, Forward Folding with Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 22 MAX Navigator with Trifold bench adds comfort where it counts with a portside navigator's helm and chair. With max capacity, there's room for up to 11 people. This model features the game-changing MAX Deck and is rigged with a Rotax outboard engine with Stealth technology.
-
HP Rating
150 HP
-
Lengths
25' 1 (7.6m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
3,836 lbs (1,740 kg)
-
Capacity
11 Persons
Engine Engine - Rotax Stealth
Dimensions Weight - 3,532 lbs (1,602 kg)
Persons/Capacity - 11
Length Overall - 25' 1 (7.6m)
Deck Overall - 25' 1 (7.6m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 150 HP
StandardFeatures Standard Accessories - Max Deck
MarineMat flooring on Max Deck, 6mm
LinQ 16" Base Attachment on Max Deck
Navigator's Chair, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Pylon
Telescoping Boarding Ladder, Starboard Stern Side of Max Deck
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
9" Garmin Display (93sv)
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Digital Power
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
Transportation and preparation not included.
- 13 Person Capacity
- MAX Deck with Rotax S 150
- Portside Navigators Helm and Switchback Lounger
- Sport Bimini, Black, Forward Folding with Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 24 MAX Switchback with Trifold bench features a portside switchback lounger with navigator helm. With max capacity, there's room for up to 13 people. This model features the game-changing MAX Deck and is rigged with a Rotax outboard engine with Stealth technology.
-
HP Rating
150 HP
-
Lengths
27' 1" (8.2m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
4,306 lbs (1,953 kg)
-
Capacity
13 Persons
Engine Engine - Rotax Stealth
Dimensions Weight - 4,002 lbs (1,815 kg)
Persons/Capacity - 13
Length Overall - 27' 1" (8.2m)
Deck Overall - 27' 1" (8.2m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 150 HP
StandardFeatures Standard Accessories - Max Deck
MarineMat flooring on Max Deck, 6mm
LinQ 16" Base Attachment on Max Deck
Switchback Lounger, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Pylon
Telescoping Boarding Ladder, Starboard Stern Side of Max Deck
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
9" Garmin Display (93sv)
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Digital Power
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
Transportation and preparation not included.
- 13 Person Capacity
- MAX Deck with Rotax S 150
- Portside Navigators Helm and Chair
- Sport Bimini, Black, Forward Folding with Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 24 MAX Navigator with Trifold bench adds comfort where it counts with a portside navigator's helm and chair. With max capacity, there's room for up to 13 people. This model features the game-changing MAX Deck and is rigged with a Rotax outboard engine with Stealth technology.
-
HP Rating
150 HP
-
Lengths
27' 1" (8.2m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
4,306 lbs (1,953 kg)
-
Capacity
13 Persons
Engine Engine - Rotax Stealth
Dimensions Weight - 4,002 lbs (1,815 kg)
Persons/Capacity - 13
Length Overall - 27' 1" (8.2m)
Deck Overall - 27' 1" (8.2m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 150 HP
StandardFeatures Standard Accessories - Max Deck
MarineMat flooring on Max Deck, 6mm
LinQ 16" Base Attachment on Max Deck
Navigator's Chair, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Pylon
Telescoping Boarding Ladder, Starboard Stern Side of Max Deck
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
9" Garmin Display (93sv)
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Digital Power
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
Transportation and preparation not included.
- 11 Person Capacity
- 100% Composite Decking
- Portside Navigators Helm and Switchback Lounger
- Sport Bimini, Black, Forward Folding w/Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 22 Switchback with Trifold Bench features a portside switchback lounger with navigator helm. With max capacity, there's room for up to 11 people. This model can be rigged with your choice of a traditional outboard engine.
-
HP Rating
250 HP
-
Lengths
23' 4" (7.1m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
3,529 lbs (1,601 kg)
-
Capacity
11 Person
Engine Engine - Standard Propulsion
Dimensions Weight - 3,529 lbs (1,601 kg)
Persons/Capacity - 11
Length Overall - 23' 4" (7.1m)
Deck Overall - 23' 4" (7.1m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 250 HP
StandardFeatures Standard Accessories - Switchback Lounger, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Bar
Boarding Ladder, Starboard Stern Side
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black"
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
Garmin 9" ECHOMAP™ UHD 93sv
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Power Assist
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion EL Speakers (4), Garmin
-
2024
Explore 22 Navigator
Transportation and preparation not included.- 11 Person Capacity
- 100% Composite Decking
- Portside Navigators Helm and Chair
- Sport Bimini, Black, Forward Folding w/Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 22 Navigator with Trifold Bench adds comfort where it counts with a portside navigator helm and chair. With max capacity, there's room for up to 11 people. This model can be rigged with your choice of a traditional outboard engine.
-
HP Rating
250 HP
-
Lengths
23' 4" (7.1m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
3,529 lbs (1,601 kg)
-
Capacity
11 Person
Engine Engine - Standard Propulsion
Dimensions Weight - 3,529 lbs (1,601 kg)
Persons/Capacity - 11
Length Overall - 23' 4" (7.1m)
Deck Overall - 23' 4" (7.1m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 250 HP
StandardFeatures Standard Accessories - Navigator's Chair, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB
Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Bar
Boarding Ladder, Starboard Stern Side
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black"
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
Garmin 9" ECHOMAP™ UHD 93sv
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Power Assist
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion EL Speakers (4), Garmin
-
Transportation and preparation not included.
- 13 Person Capacity
- 100% Composite Decking
- Portside Navigators Helm and Switchback Lounger
- Sport Bimini, Black, Forward Folding w/Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 24 Switchback with Trifold bench features a portside switchback lounger with navigator helm. With max capacity, there's room for up to 13 people. This model can be rigged with your choice of a single or dual traditional outboard engine.
-
HP Rating
300 HP (500 HP Dual Engine)
-
Lengths
25' 4" (7.7m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
3,988 lbs (1,809 kg)
-
Capacity
13 Persons
Engine Engine - Standard Propulsion
Dimensions Weight - 3,988 lbs (1,809 kg)
Persons/Capacity - 13
Length Overall - 25' 4" (7.7m)
Deck Overall - 25' 4" (7.7m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 300 HP
StandardFeatures Standard Accessories - Switchback Lounger, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger
USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Bar
Boarding Ladder, Starboard Stern Side
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
Garmin 9" ECHOMAP™ UHD 93sv
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Power Assist
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
2024
Explore 24 Navigator
Transportation and preparation not included.- 13 Person Capacity
- 100% Composite Decking
- Portside Navigators Helm and Chair
- Sport Bimini, Black, Forward Folding w/Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 24 Navigator with Trifold bench adds comfort where it counts with a portside navigator helm and chair. With max capacity, there's room for up to 13 people. This model can be rigged with your choice of a single or dual traditional outboard engine.
-
HP Rating
300 HP (500 HP Dual Engine)
-
Lengths
25' 4" (7.7m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
3,988 lbs (1,809 kg)
-
Capacity
13 Persons
Engine Engine - Standard Propulsion
Dimensions Weight - 3,988 lbs (1,809 kg)
Persons/Capacity - 13
Length Overall - 25' 4" (7.7m)
Deck Overall - 25' 4" (7.7m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 300 HP
StandardFeatures Standard Accessories - Navigator's Chair, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB
Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Bar
Boarding Ladder, Starboard Stern Side
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
Garmin 9" ECHOMAP™ UHD 93sv
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Power Assist
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
Transportation and preparation not included.
- 14 Person Capacity
- 100% Composite Decking
- Portside Navigators Helm and Switchback Lounger
- Sport Bimini, Black, Forward Folding w/Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 26 Switchback with Trifold bench features a portside switchback lounger with navigator helm. With max capacity, there's room for up to 14 people. This model can be rigged with your choice of a single or dual traditional outboard engine.
-
HP Rating
400 HP (600 HP Dual Engine)
-
Lengths
27' 4" (8.3m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
4,250 lbs (1,928 kg)
-
Capacity
14 Persons
Engine Engine - Standard Propulsion
Dimensions Weight - 4,250 lbs (1,928 kg)
Persons/Capacity - 14
Length Overall - 27' 4" (8.3m)
Deck Overall - 27' 4" (8.3m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 400 HP
StandardFeatures Standard Accessories - Switchback Lounger, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger
USB Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Bar
Boarding Ladder, Starboard Stern Side
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
Garmin 9" ECHOMAP™ UHD 93sv
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Power Assist
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
-
2024
Explore 26 Navigator
Transportation and preparation not included.- 14 Person Capacity
- 100% Composite Decking
- Portside Navigators Helm and Chair
- Sport Bimini, Black, Forward Folding w/Gas Assist
- Trifold Bench
Comparator is full! Only three options can be compared at the time.The Explore 26 Navigator with Trifold bench adds comfort where it counts with a portside navigator helm and chair. This model can be rigged with your choice of a single or dual traditional outboard engine with a max HP rating of 400 HP (600 HP Dual Engine).
-
HP Rating
400 HP (600 HP Dual Engine)
-
Lengths
27' 4" (8.3m)
-
Hull Type
V-Toon (Tritoon) Hull
-
Weight
4,250 lbs (1,928 kg)
-
Capacity
14 Persons
Engine Engine - Standard Propulsion
Dimensions Weight - 4,250 lbs (1,928 kg)
Persons/Capacity - 14
Length Overall - 27' 4" (8.3m)
Deck Overall - 27' 4" (8.3m)
Tube Diameter - 25", 27", 25" (64, 69, 64cm)
Max HP - 400 HP
StandardFeatures Standard Accessories - Navigator's Chair, Port
Trifold Bench w/3 in 1 Functionality
Preinstalled LinQ Attachments On Top of Wall (6)
Dual Rear Switchback Loungers
Dual Front Loungers
Integrated Cup Holders
Passenger USB
Charging Ports, Front and Rear
Underseat Tub Storage
Storage Cubbies, Side of Both Helms
Forward Flip Seat Hinges
Ski Tow Bar
Boarding Ladder, Starboard Stern Side
Woven Vinyl Flooring
Biminis & Enclosures - Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black
Sport Bimini, Black, Forward Folding w/Gas Assist
Mooring Cover, Black"
Construction & Quality - Formed Aluminum Walls
V-Toon Hull
Nose Cones, Anti-spray integrated splash fins
Lifting Strakes (6)
Molded Foam Seats
100% Composite Decking
Crossmembers, Extruded Aluminum
Lift Gate, Powder Coated
Furniture, Simtex Marine Vinyl
Mooring Cleats, Stainless Steel (4)
NMMA Certified using ABYC Standards
Pontoon Tube Riser, Full-length
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Helm Options - Navigator's Helm w/Dry Glove Box
USB Charging Port, Navigator's Helm
Garmin 9" ECHOMAP™ UHD 93sv
Blink Digital Switching w/Dedicated Buttons for Key Vessel Functions
Rotomold Helm
High Back Helm Chair w/Recline, Slide, and Swivel
Battery (1)
Master ON/OFF Battery Switch
Gas Tank, 43 Gallon
Phone Cubby, Captain's Helm
Steering, Power Assist
Digital Shift and Throttle
Windscreen, Plastic
Lighting - Navigation Lights, LED
Docking Lights, LED
Interior Flooring Lights, LED (2 Front, 2 Mid, 2 Rear)
Sound Systems - Fusion RA-210 Stereo, Garmin
6" Fusion Speakers (4), Garmin
Fusion RA-210 Stereo, Garmin
6" Fusion EL Speakers (4), Garmin
Be the talk of the lake
Make waves with a pontoon like no other. Stand out on the lake with the next-level design of Manitou.
YOU MAY ALSO LIKE
-
2024
Explore Dual Engine
Transportation and preparation not included.With dual engines that deliver a new level of power and control, as well as a sleek and modern design and revolutionary on-board experience, this boat is truly like no other.
-
2024
Cruise
Transportation and preparation not included.Combining enviable features with extraordinary value, owning a game-changing pontoon is now within reach.
-
2024
LX
Transportation and preparation not included.With stunning looks and performance, the LX throws average into the shade. Enjoy the thrill of a sharp, banking turn and the adrenaline rush of powerful acceleration.
-
2024
XT
Transportation and preparation not included.Experience luxurious details, cutting-edge technology and renowned craftsmanship. The perfect way to relax with family, entertain friends or enjoy a well-deserved escape.
