EXPLORE FLOOR PLANS & SPECIFICIATIONS
-

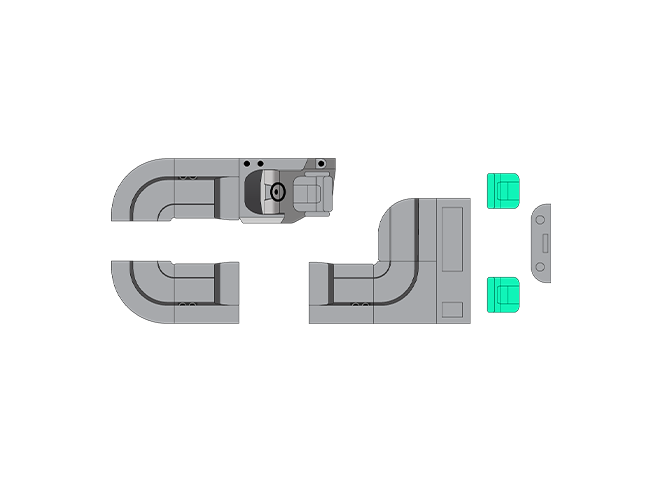

The FF angler floor plan combines front bench seating with a rear bench, livewll, and two casting chairs.
-
HP Rating
Up to 250 HP
-
Lengths
20' & 22'
-
Hull Type
Twin Tube, VP & VP II, Sport Handling Package 373 [SHP 373], Sport Handling Package 575 [SHP 575]
-
Weight
2,005 - 2,910 lbs
-
Capacity
Up to 11 persons
Colors Wall - White Metallic, Charcoal Metallic, Deep Space Blue, Burgundy, Black, Silver, Champagne
Wall Graphic - None, Blue, Burgundy, Silver, Tan
Furniture - Tan/Black, Tan/Blue, Tan/Burgundy, Tan/Neutral, Beige/Black, Beige/Blue, Beige/Burgundy, Beige/Neutral, Grey/Black, Grey/Blue, Grey/Burgundy, Grey/Neutral
Accent - Base, Burgundy, Silver, Blue, Tan
Powder Coat - Antique Silver, Black
Bimini - Black, Blue, Burgundy, Beige
Dimensions Weight - 20 Full Front Twin Tube: 2,005 lbs (909 kg)
22 Full Front Twin Tube: 2,205 lbs (1,000 kg)
20 Full Front VP & VP II: 2,460 lbs (1,116 kg)
22 Full Front VP & VP II: 2,685 lbs (1,218 kg)
20 Full Front SHP 373: 2,540 lbs (1,152 kg)
22 Full Front SHP 373: 2,785 lbs (1,263 kg)
22 Full Front SHP 575: 2,910 lbs (1,320 kg)
Persons/Capacity - 20 Full Front Twin Tube: 8 / 1,510 lbs (685 kg)
22 Full Front Twin Tube: 10 / 1,660 lbs (753 kg)
20 Full Front VP: 8 / 1,595 lbs (723 kg)
20 Full Front VP II: 8 / 1,595 lbs (723 kg)
22 Full Front VP: 10 / 1,875 lbs (850 kg)
22 Full Front VP II: 10 / 1,875 lbs (850 kg)
20 Full Front SHP 373: 8 / 1,575 lbs (714 kg)
22 Full Front SHP 373: 10 / 1,695 lbs (769 kg)
22 Full Front SHP 575: 11 / 1,935 lbs (878 kg)
Length Overall - 20 Full Front Twin Tube: 20' 11" (6.38m)
22 Full Front Twin Tube: 22' 11" (6.99m)
20 Full Front SHP 373, VP & VP II: 20' 10" (6.35m)
22 Full Front SHP 373, 575, VP & VP II: 22' 10" (6.96m)
Deck Overall - 20 Full Front Twin Tube: 19' 7" (5.97m)
22 Full Front Twin Tube: 21' 7" (6.58m)
20 Full Front VP & VP II: 19' 8" (5.99m)
22 Full Front VP & VP II: 21' 8" (6.60m)
20 Full Front SHP 373: 20' 4" (6.20m)
22 Full Front SHP 373 & 575: 22' 4" (6.81m)
Tube Diameter - Full Front Twin Tube: 25" (64cm)
Full Front SHP 373, VP & VP II: 23", 27", 23" (58,69,58 cm)
Full Front SHP 575: 25", 27", 25" (64,69,64 cm)
Max HP - 20 Full Front Twin Tube: 90 HP
22 Full Front Twin Tube: 115 HP
Full Front VP: 150 HP
20 Full Front VP II: 175 HP
22 Full Front VP II: 200 HP
20 Full Front SHP 373: 175 HP
22 Full Front SHP 373 & 575: 250 HP
StandardFeatures Standard Accessories - 12 Volt Outlet & USB Port/Aux In
4-point Fishing (Except Optional Full Front Floorplans)
Bow Eye (Twin Tube)
Cooler, Soft Side
Cupholders, Built-in (Qty Varies)
Furniture, Matrix Marine Vinyl
Gas Tank, 24 Gallon Twin Tube, 43 Gallon V-Toon
Gauges - Fuel, GPS Speedo, Tachometer, Trim Gauge, Voltmeter
Ladder, Rear Entry Wide 4 Step
Livewell (stern)
Mooring Cleats, 4
Privacy Station Assembly in Chaise (does not include Porta Potti)
Rod Holders
Seat Hinges, Hands Free Loading
Ski Tow Bar
Stern Entry Doors - 2
Waste Basket
Biminis & Enclosures - Bimini Top & Boot, Powder Coated Aluminum
Mooring Cover, Color Matched
Construction & Quality - Corner Castings, Powder Coated
Crossmembers, Extruded Aluminum
Deck, Limited Lifetime Warranty
Fasteners, Stainless Steel
Furniture, Roto-mold
Keels, Full-length Extruded Aluminum (NA, SHP & VP)
Lift Gates
Mooring Eyes
Motor Mount, Aluminum w/Splash Shields
NMMA Certified using ABYC Standards
Nose Cones, Anti-spray integrated splash fins
Pontoon Tube Riser, Full-length
Pontoon Tubes, 25" Diameter (Twin Tube)
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Wall Spacers, Deck Draining
Wall Tubing, Heavy Duty, .090" Thick, 1.25" Square
Wall Tubing, Powder Coated
Helm Options - Display, Garmin Echomap Plus 73sv
Helm Chair, Slider
Helm Chair, Recliner Low Back Bucket w/Arms
Helm, Fiberglass (w/Side Access Door)
Horn
Master ON/OFF Battery Switch
Steering, Teleflex Xtreme, Twin Tube
Windscreen
Lighting - Bimini Anchor Light, LED
In Wall, LED Docking & Navigation Lights
Interior LED Courtesy Lights
Sound Systems - Kicker KMC45 BlueTooth Stereo & 4 Standard Speakers
-
