EXPLORE FLOOR PLANS & SPECIFICIATIONS
-

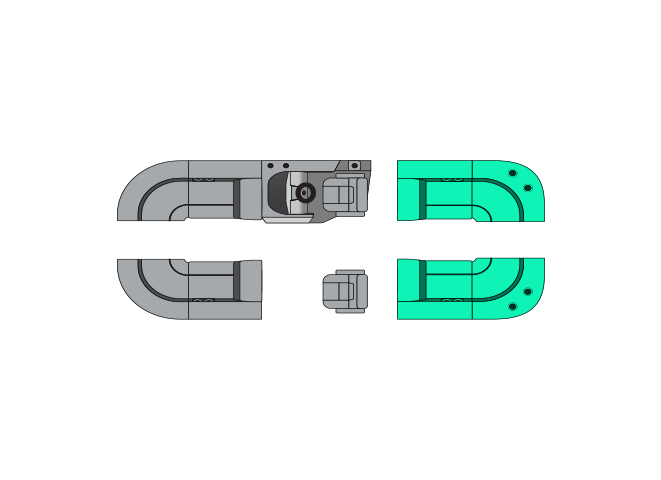

The RF floor plan maximizes seating by putting benches in the front and back of the boat.
-
HP Rating
Up to 400 HP
-
Lengths
21', 22', 23', 24' & 25'
-
Hull Type
Twin Tube, VP & VP II, Sport Handling Package 373 [SHP 373], Sport Handling Package 575 [SHP 575]
-
Weight
2,265 - 3,885 lbs
-
Capacity
Up to 14 persons
Colors Wall - Charcoal Metallic, Deep Space Blue, Burgundy, Black, White Metallic, Silver, Champagne
Wall Graphic - None, Blue, Burgundy, Silver, Tan
Furniture - Tan/Black, Tan/Blue, Tan/Burgundy, Tan/Neutral, Beige/Black, Beige/Blue, Beige/Burgundy, Beige/Neutral, Grey/Black, Grey/Blue, Grey/Burgundy, Grey/Neutral
Accent - Burgundy, Silver, Blue, Tan, Base
Powder Coat - Antique Silver, Black
Bimini - Black, Blue, Burgundy, Tan
Dimensions Weight - 22 RF Twin Tube: 2,265 lbs (1,027 kg)
24 RF Twin Tube: 2,510 lbs (1,139 kg)
21 RF VP & VP II: 2,485 lbs (1,127 kg)
23 RF VP & VP II: 2,995 lbs (1,359 kg)
25 RF VP & VP II: 3,305 lbs (1,499 kg)
21 RF SHP 373: 2,575 lbs (1,168 kg)
23 RF SHP 373: 3,100 lbs (1,406 kg)
25 RF SHP 373: 3,420 lbs (1,551 kg)
23 RF SHP 575: 3,655 lbs (1,658 kg)
25 RF SHP 575: 3,885 lbs (1,762 kg)
Persons/Capacity - 22 RF Twin Tube: 10 / 1,640 lbs (744 kg)
21 RF VP: 11 / 1,605 lbs (728 kg)
23 RF VP: 12 / 1,795 lbs (814 kg)
25 RF VP: 13 / 2,145 lbs (973 kg)
21 RF VP II: 10 / 1,465 lbs (665 kg)
23 RF VP II: 12 / 1,680 lbs (762 kg)
25 RF VP II: 13 / 1,905 lbs (878 kg)
24 RF Twin Tube: 11 / 1,865 lbs (846 kg)
21 RF SHP 373: 11 / 1,570 lbs (712 kg)
23 RF SHP 373: 12 / 1,715 lbs (778 kg)
25 RF SHP 373: 13 / 1,960 lbs (889 kg)
23 RF SHP 575: 13 / 1,835 lbs (832 kg)
25 RF SHP 575: 14 / 1,935 lbs (878 kg)
Length Overall - 22 RF Twin Tube: 22' 11" (6.99m)
24 RF Twin Tube: 24' 11" (7.59m)
21 RF SHP 373, VP & VP II: 22' 4" (6.81m)
23 RF SHP 373, SHP 575, VP & VP II: 24' 4" (7.42m)
25 RF SHP 373, SHP 575, VP & VP II: 26' 4" (8.03m)
Deck Overall - 22 RF Twin Tube: 21' 7" (3.53m)
24 RF Twin Tube: 23' 7" (7.19m)
21 RF VP & VP II: 21' 2" (6.45m)
23 RF VP & VP II: 23' 2" (7.06m)
25 RF VP & VP II: 25' 2" (7.67m)
21 RF SHP 373: 21' 10" (6.65m)
23 RF SHP 373 & 575: 23' 10" (7.26m)
25 RF SHP 373 & 575: 25' 10" (7.87m)
Tube Diameter - RF Twin Tube: 25" (64cm)
RF SHP 373, VP & VP II: 23", 27", 23" (58,69,58 cm)
RF SHP 575: 25", 27", 25" (64,69,64 cm)
Max HP - 22 RF Twin Tube: 115 HP
24 RF Twin Tube: 140 HP
RF VP: 150 HP
VP II: 200 HP
21 RF SHP 373: 200 HP
23 RF SHP 373: 250 HP
25 RF SHP 373: 300 HP
23 RF SHP 575: 300 HP
25 RF SHP 575: 400 HP
StandardFeatures Standard Accessories - 12 Volt Outlet & USB Port/Aux In
Cooler, Soft Side
Cupholders, Built-In
Extended Starboard Chaise
Furniture, Matrix Marine Vinyl
Gas Tank, 24 Gallon Twin Tube, 43 Gallon V-Toon
Ladder, Rear Entry Wide 4 Step
Mooring Cleats, 4
Privacy Station Assembly in Chaise (does not include Porta Potti)
Seat Hinges, Hands Free Loading
Ski Tow Bar
Biminis & Enclosures - Bimini Top & Boot, Powder Coated Aluminum
Mooring Cover, Color Matched
Construction & Quality - Corner Castings, Powder Coated
Crossmembers, Extruded Aluminum
Deck, Limited Lifetime Warranty
Fasteners, Stainless Steel
Furniture, Roto-mold
Keels, Full-length Extruded Aluminum (NA SHP & VP)
Lift Gates
Mooring Eyes
Motor Mount, Aluminum w/Splash Shields
NMMA Certified using ABYC Standards
Nose Cones, ANti-spray integrated splash fins
Pontoon Tubes, 25" Diameter (Twin Tube)
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Wall Spacers, Deck Draining
Wall Tubing, Heavy Duty, .090" Thick, 1.25" Square
Wall Tubing, Powder Coated
Helm Options - Display, Garmin Echomap Plus 73sv
Helm Chair, Slider
Helm Chair, Recliner Low Back Bucket w/Arms
Helm, Fiberglass (w/Side Access Door)
Horn
Master ON/OFF Battery Switch
Steering, Teleflex Xtreme, Twin Tube
Windscreen
Lighting - Bimini Anchor Light, LED
In Wall, LED Docking & Navigation Lights
Interior LED Courtesy Lights
Sound Systems - Kicker KMC45 BlueTooth Stereo & 4 Standard Speakers
-
-

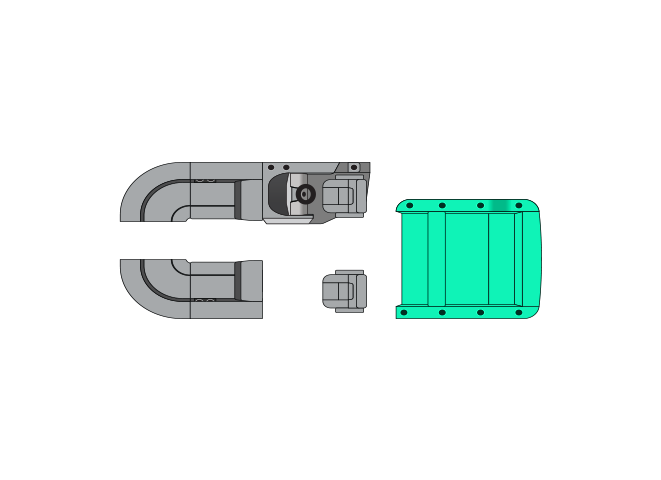

The SL is a stern lounger with multiple seating positions. Use as a forward facing bench, rear lounger, forward lounger and sunbed.
-
HP Rating
Up to 400 HP
-
Lengths
23', 24' & 25'
-
Hull Type
Twin Tube, VP & VP II, Sport Handling Package 373 [SHP 373], Sport Handling Package 575 [SHP 575]
-
Weight
2,510 - 3,885 lbs
-
Capacity
Up to 14 persons
Colors Wall - Charcoal Metallic, Deep Space Blue, Burgundy, Black, White Metallic, Silver, Champagne
Wall Graphic - None, Blue, Burgundy, Silver, Tan
Furniture - Tan/Black, Tan/Blue, Tan/Burgundy, Tan/Neutral, Beige/Black, Beige/Blue, Beige/Burgundy, Beige/Neutral, Grey/Black, Grey/Blue, Grey/Burgundy, Grey/Neutral
Accent - Burgundy, Silver, Blue, Tan, Base
Powder Coat - Antique Silver, Black
Bimini - Black, Blue, Burgundy, Tan
Dimensions Weight - 24 SL Twin Tube: 2,510 lbs (1,139 kg)
23 SL VP & VP II: 2,995 lbs (1,359 kg)
25 SL VP & VP II: 3,305 lbs (1,499 kg)
23 SL SHP 373: 3,100 lbs (1,168 kg)
25 SL SHP 373: 3,420 lbs (1,551 kg)
23 SL SHP 575: 3,665 lbs (1,658 kg)
25 SL SHP 575: 3,885 lbs (1,762 kg)
Persons/Capacity - 24 SL Twin Tube: 11 / 1,865 lbs (846 kg)
23 SL VP: 12 / 1,795 lbs (814 kg)
25 SL VP: 13 / 2,145 lbs (973 kg)
23 SL VP II: 12 / 1,680 lbs (762 kg)
25 SL VP II: 13 / 1,905 lbs (878 kg)
23 SL SHP 373: 12 / 1,715 lbs (778 kg)
25 SL SHP 373: 13 / 1,960 lbs (889 kg)
23 SL SHP 575: 13 / 1,835 lbs (832 kg)
25 SL SHP 575: 14 / 1,935 lbs (878 kg)
Length Overall - 24 SL Twin Tube: 24' 11" (7.59m)
23 SL SHP 373, 575, VP & VP II: 24' 4" (7.42m)
25 SL SHP 373, 575, VP & VP II: 26' 4" (8.03m)
Deck Overall - 24 SL Twin Tube: 23' 7" (7.19m)
23 SL VP & VP II: 23' 2" (7.06m)
25 SL VP & VP II: 25' 2" (7.67m)
23 SL SHP 373 & 575: 23' 10" (7.26m)
25 SL SHP 373 & 575: 25' 10" (7.87m)
Tube Diameter - SL Twin Tube: 25" (64cm)
SL SHP 373, VP & VP II: 23", 27", 23" (58,69,58 cm)
SL SHP 575: 25", 27", 25" (64,69,64 cm)
Max HP - SL Twin Tube: 140 HP
SL VP: 150 HP
SL VP II: 200 HP
23 SL SHP 373: 250 HP
25 SL SHP 373: 300 HP
23 SL SHP 575: 300 HP
25 SL SHP 575: 400 HP
StandardFeatures Standard Accessories - 12 Volt Outlet & USB Port/Aux In
Cooler, Soft Side
Cupholders, Built-In
Extended Starboard Chaise
Furniture, Matrix Marine Vinyl
Gas Tank, 24 Gallon Twin Tube, 43 Gallon V-Toon
Ladder, Rear Entry Wide 4 Step
Mooring Cleats, 4
Privacy Station Assembly in Chaise (does not include Porta Potti)
Seat Hinges, Hands Free Loading
Ski Tow Bar
Biminis & Enclosures - Bimini Top & Boot, Powder Coated Aluminum
Mooring Cover, Color Matched
Construction & Quality - Corner Castings, Powder Coated
Crossmembers, Extruded Aluminum
Deck, Limited Lifetime Warranty
Fasteners, Stainless Steel
Furniture, Roto-mold
Keels, Full-length Extruded Aluminum (NA SHP & VP)
Lift Gates
Mooring Eyes
Motor Mount, Aluminum w/Splash Shields
NMMA Certified using ABYC Standards
Nose Cones, ANti-spray integrated splash fins
Pontoon Tubes, 25" Diameter (Twin Tube)
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Wall Spacers, Deck Draining
Wall Tubing, Heavy Duty, .090" Thick, 1.25" Square
Wall Tubing, Powder Coated
Helm Options - Display, Garmin Echomap Plus 73sv
Helm Chair, Slider
Helm Chair, Recliner Low Back Bucket w/Arms
Helm, Fiberglass (w/Side Access Door)
Horn
Master ON/OFF Battery Switch
Steering, Teleflex Xtreme, Twin Tube
Windscreen
Lighting - Bimini Anchor Light, LED
In Wall, LED Docking & Navigation Lights
Interior LED Courtesy Lights
Sound Systems - Kicker KMC45 BlueTooth Stereo & 4 Standard Speakers
-
-

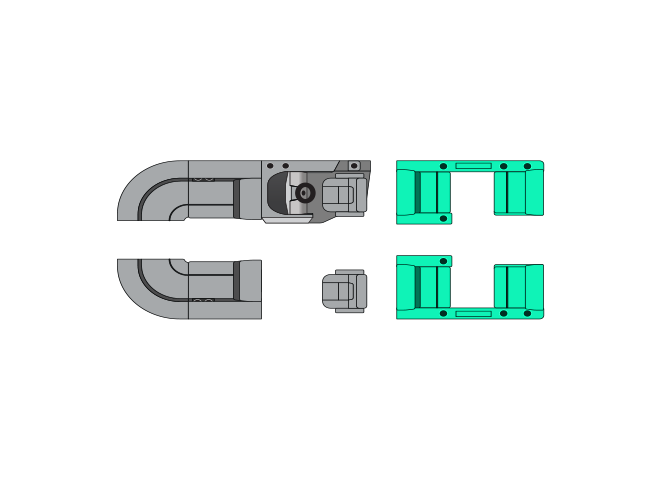

Splitting the rear-seating group creates a convenient walkway right down the boat. The split seats in the SR also convert from a single person lounge to seating for two and a table.
-
HP Rating
Up to 400 HP
-
Lengths
23', 24' & 25'
-
Hull Type
Twin Tube, VP & VP II, Sport Handling Package 373 [SHP 373], Sport Handling Package 575 [SHP 575]
-
Weight
2,510 - 3,885 lbs
-
Capacity
Up to 14 persons
Colors Wall - Charcoal Metallic, Deep Space Blue, Burgundy, Black, White Metallic, Silver, Champagne
Wall Graphic - None, Blue, Burgundy, Silver, Tan
Furniture - Tan/Black, Tan/Blue, Tan/Burgundy, Tan/Neutral, Beige/Black, Beige/Blue, Beige/Burgundy, Beige/Neutral, Grey/Black, Grey/Blue, Grey/Burgundy, Grey/Neutral
Accent - Burgundy, Silver, Blue, Tan, Base
Powder Coat - Antique Silver, Black
Bimini - Black, Blue, Burgundy, Tan
Dimensions Weight - 24 SR Twin Tube: 2,510 lbs (1,139 kg)
23 SR VP & VP II: 2,995 lbs (1,359 kg)
25 SR VP & VP II: 3,305 lbs (1,499 kg)
23 SR SHP 373: 3,100 lbs (1,168 kg)
25 SR SHP 373: 3,420 lbs (1,551 kg)
23 SR SHP 575: 3,665 lbs (1,658 kg)
25 SR SHP 575: 3,885 lbs (1,762 kg)
Persons/Capacity - 24 SR Twin Tube: 11 / 1,865 lbs (846 kg)
23 SR VP: 12 / 1,795 lbs (814 kg)
25 SR VP: 13 / 2,145 lbs (973 kg)
23 SR VP II: 12 / 1,680 lbs (762 kg)
25 SR VP II: 13 / 1,905 lbs (878 kg)
23 SR SHP 373: 12 / 1,715 lbs (778 kg)
25 SR SHP 373: 13 / 1,960 lbs (889 kg)
23 SR SHP 575: 13 / 1,835 lbs (832 kg)
25 SR SHP 575: 14 / 1,935 lbs (878 kg)
Length Overall - 24 SR Twin Tube: 24' 11" (7.59m)
23 SR SHP 373, 575, VP & VP II: 24' 4" (7.42m)
25 SR SHP 373, 575, VP & VP II: 26' 4" (8.03m)
Deck Overall - 24 SR Twin Tube: 23' 7" (7.19m)
23 SR VP & VP II: 23' 2" (7.06m)
25 SR VP & VP II: 25' 2" (7.67m)
23 SR SHP 373 & 575: 23' 10" (7.26m)
25 SR SHP 373 & 575: 25' 10" (7.87m)
Tube Diameter - SR Twin Tube: 25" (64cm)
SR SHP 373, VP & VP II: 23", 27", 23" (58,69,58 cm)
SR SHP 575: 25", 27", 25" (64,69,64 cm)
Max HP - SR Twin Tube: 140 HP
SR VP: 150 HP
23 SR VP II: 200 HP
25 SR VP II: 200 HP
23 SR SHP 373: 250 HP
25 SR SHP 373: 300 HP
23 SR SHP 575: 300 HP
25 SR SHP 575: 400 HP
StandardFeatures Standard Accessories - 12 Volt Outlet & USB Port/Aux In
Cooler, Soft Side
Cupholders, Built-In
Extended Starboard Chaise
Furniture, Matrix Marine Vinyl
Gas Tank, 24 Gallon Twin Tube, 43 Gallon V-Toon
Ladder, Rear Entry Wide 4 Step
Mooring Cleats, 4
Privacy Station Assembly in Chaise (does not include Porta Potti)
Seat Hinges, Hands Free Loading
Ski Tow Bar
Biminis & Enclosures - Bimini Top & Boot, Powder Coated Aluminum
Mooring Cover, Color Matched
Construction & Quality - Corner Castings, Powder Coated
Crossmembers, Extruded Aluminum
Deck, Limited Lifetime Warranty
Fasteners, Stainless Steel
Furniture, Roto-mold
Keels, Full-length Extruded Aluminum (NA SHP & VP)
Lift Gates
Mooring Eyes
Motor Mount, Aluminum w/Splash Shields
NMMA Certified using ABYC Standards
Nose Cones, ANti-spray integrated splash fins
Pontoon Tubes, 25" Diameter (Twin Tube)
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Wall Spacers, Deck Draining
Wall Tubing, Heavy Duty, .090" Thick, 1.25" Square
Wall Tubing, Powder Coated
Helm Options - Display, Garmin Echomap Plus 73sv
Helm Chair, Slider
Helm Chair, Recliner Low Back Bucket w/Arms
Helm, Fiberglass (w/Side Access Door)
Horn
Master ON/OFF Battery Switch
Steering, Teleflex Xtreme, Twin Tube
Windscreen
Lighting - Bimini Anchor Light, LED
In Wall, LED Docking & Navigation Lights
Interior LED Courtesy Lights
Sound Systems - Kicker KMC45 BlueTooth Stereo & 4 Standard Speakers
-
-

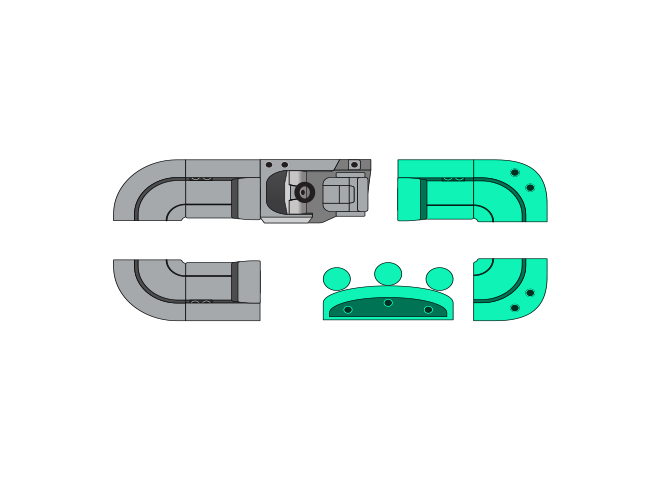

The Bar floor plan features a floating bar top on the port side and bench seating in the rear.
-
HP Rating
Up to 400 HP
-
Lengths
23', 24' & 25'
-
Hull Type
Twin Tube, VP & VP II, Sport Handling Package 373 [SHP 373], Sport Handling Package 575 [SHP 575]
-
Weight
2,510 - 3,885 lbs
-
Capacity
Up to 14 persons
Colors Wall - Charcoal Metallic, Deep Space Blue, Burgundy, Black, White Metallic, Silver, Champagne
Wall Graphic - None, Blue, Burgundy, Silver, Tan
Furniture - Tan/Black, Tan/Blue, Tan/Burgundy, Tan/Neutral, Beige/Black, Beige/Blue, Beige/Burgundy, Beige/Neutral, Grey/Black, Grey/Blue, Grey/Burgundy, Grey/Neutral
Accent - Burgundy, Silver, Blue, Tan, Base
Powder Coat - Antique Silver, Black
Bimini - Black, Blue, Burgundy, Tan
Dimensions Weight - 24 BAR Twin Tube: 2,510 lbs (1,139 kg)
23 BAR VP & VP II: 2,995 lbs (1,359 kg)
25 BAR VP & VP II: 3,305 lbs (1,499 kg)
23 BAR SHP 373: 3,100 lbs (1,168 kg)
25 BAR SHP 373: 3,420 lbs (1,551 kg)
23 BAR SHP 575: 3,665 lbs (1,658 kg)
25 BAR SHP 575: 3,885 lbs (1,762 kg)
Persons/Capacity - 24 BAR Twin Tube: 11 / 1,865 lbs (846 kg)
23 BAR VP: 12 / 1,795 lbs (814 kg)
25 BAR VP: 13 / 2,145 lbs (973 kg)
23 BAR VP II: 12 / 1,680 lbs (762 kg)
25 BAR VP II: 13 / 1,905 lbs (878 kg)
23 BAR SHP 373: 12 / 1,715 lbs (778 kg)
25 BAR SHP 373: 13 / 1,960 lbs (889 kg)
23 BAR SHP 575: 13 / 1,835 lbs (832 kg)
25 BAR SHP 575: 14 / 1,935 lbs (878 kg)
Length Overall - 24 BAR Twin Tube: 24' 11" (7.59m)
23 BAR SHP 373, 575, VP & VP II: 24' 4" (7.42m)
25 BAR SHP 373, 575, VP & VP II: 26' 4" (8.03m)
Deck Overall - 24 BAR Twin Tube: 23' 7" (7.19m)
23 BAR VP & VP II: 23' 2" (7.06m)
25 BAR VP & VP II: 25' 2" (7.67m)
23 BAR SHP 373 & 575: 23' 10" (7.26m)
25 BAR SHP 373 & 575: 25' 10" (7.87m)
Tube Diameter - BAR Twin Tube: 25" (64cm)
BAR SHP 373, VP & VP II: 23", 27", 23" (58,69,58 cm)
BAR SHP 575: 25", 27", 25" (64,69,64 cm)
Max HP - 24 BAR Twin Tube: 140 HP
BAR VP: 150 HP
BAR VP II: 200 HP
23 BAR SHP 373: 250 HP
25 BAR SHP 373: 300 HP
23 BAR SHP 575: 300 HP
25 BAR SHP 575: 400 HP
StandardFeatures Standard Accessories - 12 Volt Outlet & USB Port/Aux In
Cooler, Soft Side
Cupholders, Built-In
Extended Starboard Chaise
Furniture, Matrix Marine Vinyl
Gas Tank, 24 Gallon Twin Tube, 43 Gallon V-Toon
Ladder, Rear Entry Wide 4 Step
Mooring Cleats, 4
Privacy Station Assembly in Chaise (does not include Porta Potti)
Seat Hinges, Hands Free Loading
Ski Tow Bar
Biminis & Enclosures - Bimini Top & Boot, Powder Coated Aluminum
Mooring Cover, Color Matched
Construction & Quality - Corner Castings, Powder Coated
Crossmembers, Extruded Aluminum
Deck, Limited Lifetime Warranty
Fasteners, Stainless Steel
Furniture, Roto-mold
Keels, Full-length Extruded Aluminum (NA SHP & VP)
Lift Gates
Mooring Eyes
Motor Mount, Aluminum w/Splash Shields
NMMA Certified using ABYC Standards
Nose Cones, ANti-spray integrated splash fins
Pontoon Tubes, 25" Diameter (Twin Tube)
Powder Coated Rub Rail
Riser Brackets, "M" Style
Transducer Bracket
Wall Spacers, Deck Draining
Wall Tubing, Heavy Duty, .090" Thick, 1.25" Square
Wall Tubing, Powder Coated
Helm Options - Display, Garmin Echomap Plus 73sv
Helm Chair, Slider
Helm Chair, Recliner Low Back Bucket w/Arms
Helm, Fiberglass (w/Side Access Door)
Horn
Master ON/OFF Battery Switch
Steering, Teleflex Xtreme, Twin Tube
Windscreen
Lighting - Bimini Anchor Light, LED
In Wall, LED Docking & Navigation Lights
Interior LED Courtesy Lights
Sound Systems - Kicker KMC45 BlueTooth Stereo & 4 Standard Speakers
-
Share
